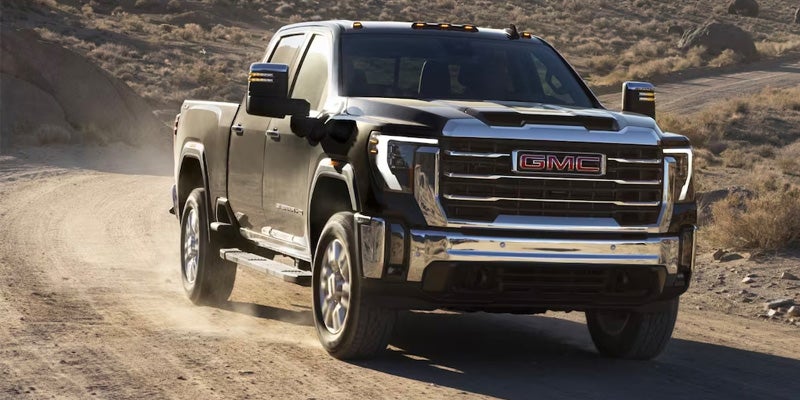

Heavy Duty with Style
Distinguished from their half-ton counterpart, the Sierra 1500, the Sierra 2500HD and 3500HD variants stand as the unequivocal leaders in their segment. Notably, these GMC pickups surpass the offerings of the Chevrolet Silverado HD range in terms of opulence and refinement. Powering these models is a formidable 6.6-liter V-8 engine, producing 401 horsepower, seamlessly paired with a 10-speed automatic transmission. For those seeking enhanced towing capabilities, the optional 445-hp Duramax turbodiesel V-8, mated to a 10-speed automatic transmission, becomes indispensable, enabling the Sierra HD to achieve an impressive maximum conventional towing capacity of 22,500 pounds.
Augmenting the Sierra HD's functionality are a range of supplementary trailer assist features, including Transparent Trailer View, Trailer Side Blind Zone Alert, and the availability of adaptive cruise control specifically tailored for trailering scenarios. These features collectively enhance the Sierra HD's efficiency and efficacy, allowing it to work intelligently and efficiently.
The Sierra HD is a compelling choice for those seeking a capable heavy duty truck. If you have any questions about the Sierra 2500 or any of the models we stock please contact us using the link below.
New for 2024
Highlights
- Enhanced power with the combination of the available 6.6L Duramax Turbo-Diesel V-8 and 10-speed Allison transmission delivering 470 horsepower and 975 lb-ft of torque and providing 25% more low-end torque vs. the current model for a greater feeling of power on demand

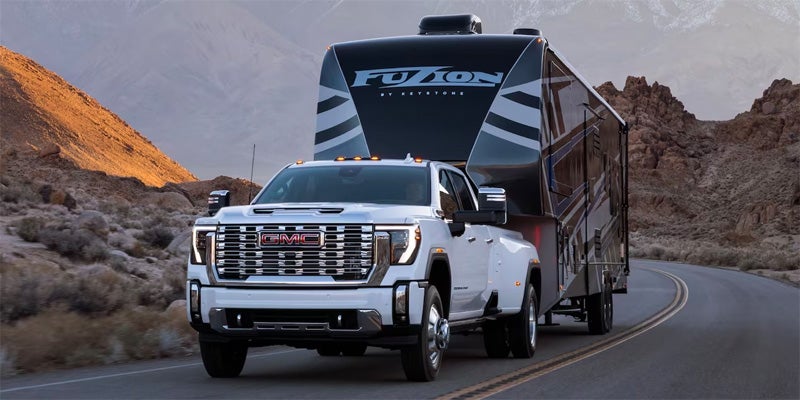

- Up to 21,9002 pounds on 2500HD Crew Cab ā best in class
- Up to 22,5003 pounds on 2500HD ā a 4,000-pound increase over the current model
- Up to 36,0004 pounds on 3500HD
- Most available trailering assistance technologies in its class through GMCās ProGrade trailering system, offering up to 14 camera views
- Updated technologies including an available new, largest in-class 13.4-inch-diagonal tablet-style infotainment touchscreen
Interior and exterior highlights
- Revised front bumper, fascia, grille designs and finishes on each trim
- Animated lighting when approaching, starting, or when using the turn signals
- New wheel designs on SLE, AT4, Denali and larger 18-inch polished aluminum wheels on dual rear-wheel models
- New 22-inch accessory wheels
- Six new exterior colors (extra cost): Titanium Rush Metallic, Sterling Metallic, Volcanic Red Tintcoat, Redwood Metallic, Meteorite Metallic and Downpour Metallic
- Rear wheelhouse liners standard on Denali and Denali Ultimate dual rear-wheel models
Internally, GMC's team of designers has distinguished the Sierra model from its competitors through the introduction of distinct and novel interior designs for the SLE and SLT trims. Moreover, unique GMC premium interior designs have been meticulously crafted for the AT4, Denali, and Denali Ultimate trims. The interior enhancements extend to new color palettes and stitching patterns, seamlessly integrated throughout the cabin. These modifications, coupled with the integration of elevated materials, serve to enhance the Sierra's overall premium aesthetics and tactile experience.
First-ever Sierra HD Denali Ultimate
The Denali Ultimate variant is readily discernible by its exterior, which boasts an exclusive grille and GMC badging in the elegant Vader chrome finish. The presence of unique 20-inch Ultra-bright machined aluminum wheels, accentuated with High Gloss black accents, further contributes to its distinguished appearance. Notably, the fender badging showcases the topography of Mount Denali, North America's highest peak. Furthermore, the Denali Ultimate model boasts a six-way MultiPro Tailgate as a standard feature, complemented by a Kicker audio system and power assist steps.
Stepping into the interior, the Denali Ultimate exudes an unmatched sense of luxury and comfort, surpassing previous benchmarks for heavy-duty trucks. The cabin is adorned with full-grain leather appointments and open-pore Paldao wood trim, meticulously curated to create an atmosphere of refined elegance. The darkened finish of the wood trim imparts a distinctive color interplay, while the unique grain pattern reflects a meticulous attention to bespoke craftsmanship. Additional enhancements encompass:
- Full-grain leather-wrapped door panels with etched stainless-steel speaker grilles

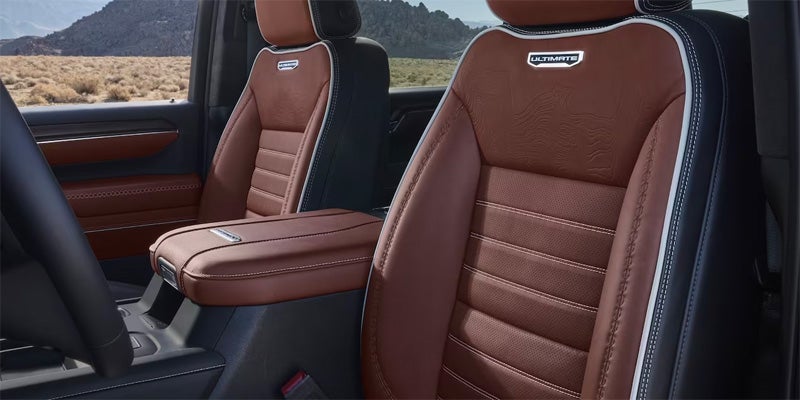

- Full-grain leather front and rear seats with the Denali Ultimate badge on the front seatbacks and center console lid
- All-new 16-way power-adjustable and massaging front seats
- Premium microsuede headliner, visors and A- and B-pillar trim along with leather-wrapped A- and B-pillar handles
- 12-speaker BoseĀ® Premium series with Centerpoint surround technology
- Standard rear camera mirror, with full camera display
- Standard 15-inch-diagonal multicolor head-up display
- Standard power sunroof
A more Powerful Duramax Turbo-Diesel
Furthermore, the 2024 Sierra HD will establish new benchmarks with its towing prowess, offering an unrivaled 2500 Crew Cab towing capacity of up to 21,900 pounds and an exceptional maximum 2500 towing capacity of up to 22,500 pounds, achievable through the incorporation of the new optional Max Tow Package.
A series of additional enhancements and modifications have been meticulously devised to optimize combustion efficiency and elevate overall performance. This latest iteration of the Duramax engine introduces supplementary refinements, including:
- An all-new, more efficient turbocharger with improved efficiency to boost low-end torque
- Increased power and torque over the entire operating speed range
- Improved engine braking with a more powerful turbo vane actuator and uprated valve springs
- New cylinder heads with improved cooling jackets
- An all-new combustion system within the heads thatās matched with next-generation, higher-flow injectors and greater fuel injection pressure
- All-new engine controller
The Sierra HD's standard 6.6L gas engine now benefits from the integration of the Allision 10-speed automatic transmission, supplanting the previous six-speed counterpart. This upgrade introduces finer gear transitions, facilitating a more seamless power delivery experience. The refined gear ratios allow the 6.6L gas engine to sustain proximity to its peak power output (401 horsepower and 464 lb-ft of torque) for extended durations.
Consequently, this refinement translates into a heightened sense of assured, readily available power, regardless of whether the vehicle is engaged in trailer towing activities. Moreover, during towing operations, the 10-speed configuration notably contributes to an elevated level of trailering performance and capability. This is further reinforced by the transmission's ability to efficiently channel the entirety of torque ā measured in pound-feet ā to the tires in each gear, thereby accentuating the Sierra HD's overall trailering prowess.
Enhanced Technology
- Available Enhanced, Industry First Transparent Trailer View for Gooseneck and Fifth Wheel Trailering: Allows the driver to virtually āsee throughā the trailer. Using the camera mounted on the rear of the truck and an accessory camera on the back of the trailer, it pieces together a view of the area behind the truck and trailer as if the trailer was not there, improving visibility. An enhanced version of this technology for model year 2024 enables compatibility with gooseneck and fifth-wheel trailers.
- Available Trailer Side Blind Zone Alert: Extends side blind zone alerts to include the blind zone areas around the trailer.
- New GCW Alert: This all-new feature warns the driver if the vehicle and trailer weight exceed the vehicleās Gross Combined Weight Rating.
- New, Available Adaptive Cruise Control with Trailering: Allows the Sierra HDās available Adaptive Cruise Control to be used while trailering and to account for additional drag and increased braking distances when towing a trailer.
The 2024 Sierra offers up to 14 available camera views.
- Hitch Guidance with Hitch View: Provides a close-up view of the receiver hitch to help with alignment when connecting to a trailer.
- Bed View with Zoom and Bed Hitch Guidance: Allows you to see the cargo bed to help with fifth-wheel or gooseneck hitching or to briefly check on cargo.
- Rear Side View with Trailer Length Indicator: With a compatible trailer attached and a turn signal activated, this view will show a full screen down the side of the truck along with a Trailer Length Indicator to aid in lane-change maneuvers by visually showing obstructions with the trailer in adjacent lanes.
High-Tech Digital Displays

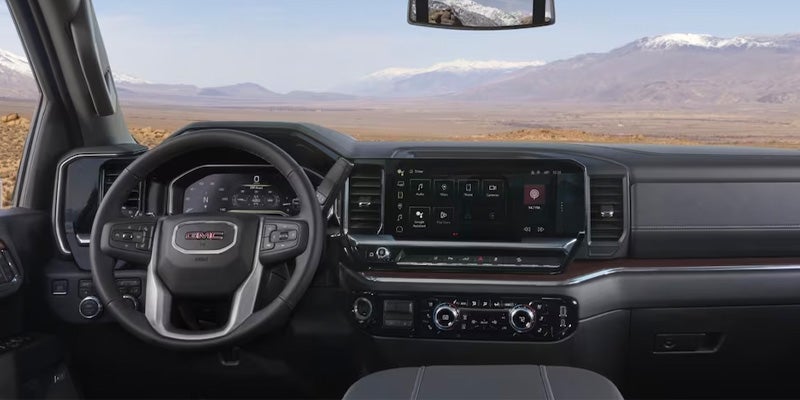

At the heart of Sierra's technologically advanced interior cabin lies the newly available 13.4-inch-diagonal tablet-style touchscreen ā unrivaled as the largest infotainment touchscreen within its class. Positioned horizontally, this touchscreen interface delivers a user-friendly and customizable interaction. The 2024 model year introduces additional enhancements, including the availability of a multicolor 15-inch-diagonal head-up display and a new 12.3-inch-diagonal digital instrument cluster. Collectively, these innovations combine to offer an expansive expanse of over 40 inches of immersive digital displays, contributing to a dynamic, adaptable, and all-encompassing driving experience.

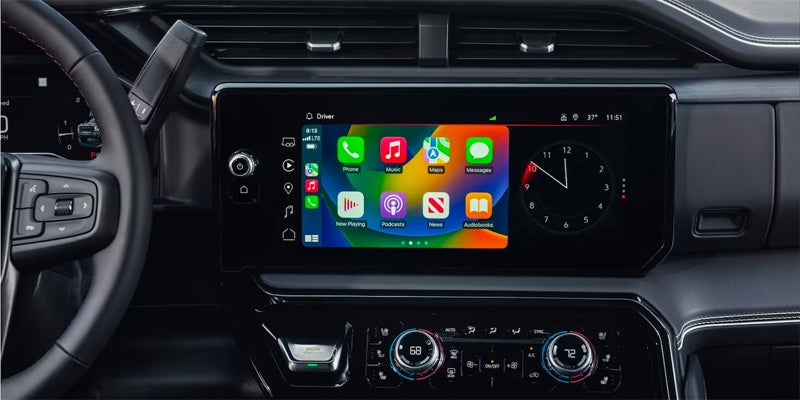

The novel touchscreen infotainment hub can be effortlessly tailored to suit individual preferences, permitting the operation of multiple applications concurrently in a "split-screen" layout. This versatile arrangement, for instance, allows the simultaneous use of a Navigation app on the left side while accessing a Music app on the right. Enriching the infotainment ecosystem, the Sierra HD's system seamlessly integrates Google built-in (except Pro trim), enabling users to seamlessly interconnect various facets of their daily routines within the vehicle. Furthermore, compatibility extends to both Wireless Apple CarPlay and Wireless Android Auto, ensuring a seamless connectivity experience.
Sierra 2500 Trims
Pro
- Standard 6.6L V8 Gas Engine With AllisonĀ® 10-Speed Automatic Transmission
- Standard LED Headlamps and Daytime Running Lamps
- Standard Trailering Package and Trailering Mirrors
- Best-in-Class Heavy-Duty Cargo Bed Volume
- Standard Wireless Apple CarPlayĀ®ā and Wireless Android Auto Compatibility
- Available MultiProā¢ Tailgate
SLE
- Standard 6.6L V8 Gas Engine With AllisonĀ® 10-Speed Automatic Transmission
- Standard 13.4" Diagonal Center Touch-Screen and 12.3" Diagonal Driver Information Center
- Available X31 Off-Road Package With Twin-Tube RanchoĀ® Shocks and Skid Plates
- Standard Wireless Apple CarPlayĀ® and Wireless Android Autoā¢ Compatibility
- Standard MultiProā¢ Tailgate
SLT
- Standard 6.6L V8 Gas Engine With AllisonĀ® 10-Speed Automatic Transmission
- 13.4" Diagonal Center Touch-Screen and 12.3" Diagonal Driver Information Center
- Dual-zone Automatic Climate Control
- Available 10-Way Power-Adjustable Front Heated and Ventilated Bucket Seats With Perforated Leather Appointments
AT4
- Standard 6.6L V8 Gas Engine With AllisonĀ® 10-Speed Automatic Transmission
- 13.4" Diagonal Center Touch-Screen, 12.3" Diagonal Digital Driver Information Center and Available Multicolor 15" Diagonal Head-Up Display With Off-Road Inclinometer
- Unique Jet Black Interior With Kalahari Accents and Heated and Ventilated Perforated Front Leather Seating Surfaces
- Standard 20" Gloss-Black Aluminum Wheels With Available BFGoodrich Off-Road Tires
- Off-Road Suspension Package With Twin-Tube RanchoĀ® Shocks and Skid Plates
Denali
- Standard 6.6L V8 Gas Engine With AllisonĀ® 10-Speed Automatic Transmission
- Standard 20" Ultra-Bright Machined Wheels With Bright Chrome Inserts (Single Rear Wheel Models Only)
- 13.4" Diagonal Center Touch-Screen, 12.3" Diagonal Digital Driver Information Center and Available Multicolor 15" Diagonal Head-Up Display
- Denali-Exclusive Authentic Open-Pore Wood, Patterned Aluminum Trim and Forge Perforated Leather Seating Surfaces
AT4X
- Standard 6.6L V8 Gas Engine With AllisonĀ® 10-Speed Automatic Transmission
- Multimaticā¢ DSSV Dampers
- Rear E-Locking Differential
- Heated and Ventilated 16-Way Power Front Seats With Massage Feature
- Obsidian Rush Interior Featuring Full-Grain Leather Seating With Technical-Grain Leather Accents and Authentic Vanta Ash Wood
- 12-Speaker Bose Premium Series With CenterpointĀ® Surround Sound
- 35" GoodyearĀ® Territory MT Tires
- Factory-Installed 1.5" Suspension Lift
- Larger Steel Transfer Case Skid Plate and Front Aluminum Skid Plate
Denali Ultimate
- Standard 6.6L Duramax Turbo Diesel V8 Engine With AllisonĀ® 10-Speed Automatic Transmission
- Signature Denali Ultimate Vader Chrome Grille and Exclusive 20ā³ Ultra-Bright Machined Aluminum Wheels With Gloss-Black Inserts (Single Rear Wheel Models Only)
- Ultimate Alpine Umber Interior Featuring Full-Grain Leather Seating, Authentic Open-Pore Paldao Wood and 16-Way Power Front Seats With Massage Feature
- 12-Speaker Bose Premium Series With CenterpointĀ® Surround Sound
- Standard Illuminated Power Assist Steps and MultiPro Audio System by KICKERĀ®
Specifications
2024 GMC SIERRA 2500 HD & 3500 HD SPECIFICATIONS
(click to expand)
CONFIGURATIONS
2500 HD |
Regular Cab Long Bed (2WD & 4WD) Double Cab Standard Bed (2WD & 4WD) Double Cab Long Bed (2WD & 4WD) Crew Cab Standard Bed (2WD & 4WD) Crew Cab Long Bed (2WD & 4WD) |
3500 HD |
Regular Cab Long Bed (2WD & 4WD) ā single rear wheels Regular Cab Long Bed (2WD & 4WD) ā dual rear wheels Double Cab Long Bed (2WD & 4WD) ā single rear wheels Double Cab Long Bed (2WD & 4WD) ā dual rear wheels Crew Cab Standard Bed (2WD & 4WD) ā single rear wheels Crew Cab Long Bed (2WD & 4WD) ā single rear wheels Crew Cab Long Bed (2WD & 4WD) ā dual rear wheels |
ENGINES
Type: |
6.6L V-8 gasoline or E85 FlexFuel |
Bore & Stroke (in / mm): |
4.06 x 3.86 / 103.25 x 98 |
Block Material: |
Cast iron with nodular iron main caps |
Cylinder Head Material: |
Cast aluminum |
Compression Ratio: |
10.8:1 |
Valvetrain: |
Overhead-valve, two valves per cylinder, variable valve timing |
Fuel Delivery: |
Direct fuel injection |
Horsepower |
401 / 299 @ 5200 (SAE certified ā gasoline) |
Torque |
464 / 629 @ 4000 (SAE certified ā gasoline) |
Type: |
Duramax 6.6L V-8 Turbo-Diesel |
Bore & Stroke (in / mm): |
4.05 x 3.89 / 103 x 99 |
Block Material: |
Cast iron |
Cylinder Head Material: |
Cast aluminum |
Compression Ratio: |
16.0:1 |
Valvetrain: |
Overhead-valve, four valves per cylinder |
Fuel Delivery: |
Common-rail direct fuel injection |
Horsepower |
470 / 350 @ 2800 rpm |
Torque |
975 / 1322 @ 1600 rpm |
TRANSMISSION & AXLE
Type: |
AllisonĀ® 10L1000 10-speed automatic |
Gear Ratios (:1): |
|
First |
4.54 |
Second |
2.87 |
Third |
2.06 |
Fourth |
1.72 |
Fifth |
1.48 |
Sixth |
1.26 |
Seventh |
1.00 |
Eighth |
0.85 |
Ninth |
0.69 |
Tenth |
0.63 |
Reverse |
4.54 |
Final Drive Ratio: |
3.73 (6.6L gas) 3.42 (6.6L diesel) |
CHASSIS & SUSPENSION
Front Suspension: |
Short long arms independent front suspension with torsion bars |
Rear Suspension: |
Semi-elliptic, two-stage, multi-leaf springs on 2500; semi-elliptic, three-stage, multi-leaf springs on 2500 with available Max Towing Package and 3500. |
Steering Type: |
Hydraulic power-assisted recirculating ball; includes Digital Variable Steering Assist on SLT, AT4, Denali and Denali Ultimate |
Brake Type: |
Hydraulic power-assisted Hydroboost brake booster, four-wheel disc brakes with ABS and Stabilitrak electronic stability assist |
Brake Rotor Size (in / mm): |
Front: 14 x 1.6 / 355 x 40 (2500 and 3500) Rear: 14 x 1.6 / 355 x40 (3500 DRW) |
Wheel Size: |
17-in. steel (2500 and 3500 w/DRW) 17-in. steel or aluminum (2500) 18-in. steel or aluminum (2500 and 3500) 18-in. forged aluminum (3500 w/DRW) 20-in. aluminum (2500 and 3500) 22-in. aluminum (2500) |
Tire Size: |
LT235/80R17E AT (3500HD DRW) LT235/80R18E AT (3500 DRW) LT245/75R17E ALS (2500) LT265/70R17E AT (2500) LT275/70R18E AT (2500 & 3500) LT275/70R18E OOR (2500) LT275/65R20E OOR (2500 & 3500) LT275/65R20E AT (2500 & 3500) LT265/60R22E AT (2500) |
FUEL TANK CAPACITY (approx.)
|
Regular Cab |
Double Cab |
Crew Cab |
Fuel Tank (gal. / L): |
36 / 136 ā gas 28 / 106 ā diesel |
36 / 136 ā gas 29.4 / 111 ā diesel (standard bed) 36 / 136 ā diesel (long bed) |
36 / 136 ā gas 36 / 136 ā diesel |
EXTERIOR DIMENSIONS
|
Regular Cab |
Double Cab |
Crew Cab |
Wheelbase |
141.55 / 3595 (long bed) |
149.4 / 3795 (standard bed) 162.48 / 4127 (long bed) |
158.94 / 4037 (standard bed) 172 / 4369 (long bed) |
Overall Length |
236.6 / 6002 (long bed) |
241.22 / 6127 (standard bed) 257.24 / 6534 (long bed) |
250.75 / 6369 (standard bed) 266.77 / 6776 (long bed) |
Overall Width (in / mm): |
81.75 / 2076 (SRW) 96.75 / 2457 (DRW) |
81.85 / 2079 (SRW) 96.75 / 2457 (DRW) |
81.85 / 2079 (SRW) 96.75 / 2457 (DRW) |
Overall Height |
79.94 / 2030 (2500) 80.94 / 2056 (3500 SRW) 80.24 / 2038 (3500 DRW) |
79.95 / 2031 (2500 std. bed) 79.80 / 2027 (2500 long bed) 80.87 / 2054 (3500 SRW) 80.2 / 2037 (3500 DRW) |
79.82 / 2027 (2500 std. bed) 79.65 / 2023 (2500 long bed) 80.87 / 2054 (3500 std. bed) 80.67 / 2049 (3500 long bed) |
Front Track (in / mm): |
68.1 / 1731 |
68.1 / 1731 |
68.1 / 1731 |
Rear Track (in / mm): |
68.3 / 1736 (SRW) 75 / 1905 (DRW) |
68.3 / 1736 (SRW) 75 / 1905 (DRW) |
68.3 / 1736 (SRW) 75 / 1905 (DRW) |
2500 HD Ground Clearance (in / mm): |
10.2 / 259
|
10.16 / 258 (standard bed) 10.12 / 257 (long bed) |
10.12 / 257 (standard bed) 10.28 / 261 (Denali & Denali Ultimate) 10.08 / 256 (long bed) |
3500 HD Ground Clearance (in / mm): |
11.22 / 285 (SRW) 10.47 / 266 (DRW) |
11.18 / 284 (SRW) 10.39 / 264 (DRW) |
11.18 / 284 (standard bed & SRW) 11.14 / 283 (long bed & SRW) 10.39 / 264 (long bed & DRW) |
INTERIOR DIMENSIONS
|
Regular Cab |
Double Cab |
Crew Cab |
Headroom |
43.11 / 1095 |
43.03 / 1093 (front) |
43.03 / 1093 (front) |
Legroom |
44.53 / 1131 |
44.53 / 1131 (front) |
44.53 / 1131 (front) |
Shoulder Room (in / mm): |
66.06 / 1678 |
66.02 / 1677 (front) |
66.02 / 1677 (front) |
Hip Room |
60.9 / 1547 |
61.18 / 1554 (front) |
61.18 / 1554 (front) |
BASE CURB WEIGHT1
|
Regular Cab |
Double Cab |
Crew Cab |
2500 HD ā 2WD (lb / kg): |
6203 / 2813 ā gas 6825 / 3095 ā diesel |
6582 / 2985 ā gas (standard bed) 7231 / 3280 ā diesel (standard bed) 6654 / 3018 ā gas (long bed) 7343 / 3330 ā diesel (long bed) |
6686 / 3032 ā gas (standard bed) 7381 / 3348 ā diesel (standard bed) 6739 / 3056 ā gas (long bed) 7428 / 3369 ā diesel (long bed) |
2500 HD ā 4WD (lb / kg): |
6551 / 2971 ā gas 7012 / 3180 ā diesel |
6929 / 3143 ā gas (standard bed) 7578 / 3437 ā diesel (standard bed) 6958 / 3156 ā gas (long bed) 7647 / 3468 ā diesel (long bed) |
7006 / 3178 ā gas (standard bed) 7701 / 3493 ā diesel (standard bed) 7047 / 3196 ā gas (long bed) 7736 / 3509 ā diesel (long bed) |
3500 HD ā 2WD SRW (lb / kg): |
6329 / 2870 ā gas 6976 / 3164 ā diesel |
6798 / 3083 ā gas 7506 / 3404 ā diesel |
6830 / 3098 ā gas (standard bed) 7550 / 3424 ā diesel (standard bed) 6883 / 3122 ā gas (long bed) 7597 / 3446 ā diesel (long bed) |
3500 HD ā 4WD SRW (lb / kg): |
6672 / 3026 ā gas 7318 / 3319 ā diesel |
7106 / 3223 ā gas 7813 / 3544 ā diesel |
7151 / 3243 ā gas (standard bed) 7871 / 3570 ā diesel (standard bed) 7190 / 3261 ā gas (long bed) 7903 / 3584 ā diesel (long bed) |
3500 HD ā 2WD DRW (lb / kg): |
6672 / 3026 ā gas 7318 / 3319 ā diesel |
7142 / 3239 ā gas 7848 / 3559 ā diesel |
7227 / 3278 ā gas (long bed) 7939 / 3601 ā diesel (long bed) |
3500 HD ā 4WD DRW (lb / kg): |
7015 / 3182 ā gas 7661 / 3475 ā diesel |
7449 / 3417 ā gas 8155 / 3699 ā diesel |
7534 / 3335 ā gas (long bed) 8246 / 3740 ā diesel (long bed) |
1With standard 17-inch wheels on 2500 HD and 3500 HD DRW; standard 18-in. or 20-in. wheels on 3500 HD SRW.
BASE GVWR1
|
Regular Cab |
Double Cab |
Crew Cab |
2500 HD ā 2WD (lb / kg): |
10000 / 4536 ā gas 10550 / 4785 ā diesel |
10050 / 4559 ā gas (standard bed) 10700 / 4853 ā diesel (standard bed) 10200 / 4627 ā gas (long bed) 10900 / 4944 ā diesel (long bed) |
10150 / 4604 ā gas (standard bed) 10800 / 4899 ā diesel (standard bed) 10300 / 4672 ā gas (long bed) 11000 / 4990 ā diesel (long bed) |
2500 HD ā 4WD (lb / kg): |
10250 / 4694 ā gas 10900 / 4944 ā diesel |
10350 / 4695 ā gas (standard bed) 11000 / 4990 ā diesel (standard bed) 10500 / 4763 ā gas (long bed) 11200 / 5080 ā diesel (long bed) |
10450 / 4740 ā gas (standard bed) 11150 / 5058 ā diesel (standard bed) 10650 / 4831 ā gas (long bed) 11350 / 5148 ā diesel (long bed) |
3500 HD ā 2WD SRW (lb / kg): |
10950 / 4966 ā gas 11500 / 5216 ā diesel |
11300 / 5125 ā gas 11850 / 5375 ā diesel |
11200 / 5080 ā gas (standard bed) 11750 / 5330 ā diesel (standard bed) 11350 / 5148 ā gas (long bed) 11900 / 5398 ā diesel (long bed) |
3500 HD ā 4WD SRW (lb / kg): |
11300 / 5125 ā gas 11800 / 5352 ā diesel |
11600 / 5261 ā gas 12150 / 5511ā diesel |
11550 / 5238 ā gas (standard bed) 12100 / 5489 ā diesel (standard bed) 11700 / 5307 ā gas (long bed) 12250 / 5557 ā diesel (long bed) |
3500 HD ā 2WD DRW (lb / kg): |
14000 / 6350 ā gas 14000 / 6350 ā diesel |
14000 / 6350 ā gas 14000 / 6350 ā diesel |
14000 / 6350 ā gas 14000 / 6350 ā diesel |
3500 HD ā 4WD DRW (lb / kg): |
14000 / 6350 ā gas 14000 / 6350 ā diesel |
14000 / 6350 ā gas 14000 / 6350 ā diesel |
14000 / 6350 ā gas 14000 / 6350 ā diesel |
1When properly equipped; includes weight of vehicle, passengers, cargo and equipment. Specifications include standard 17-inch wheels on 2500 HD and 3500 HD DRW; standard 18-in. or 20-in. wheels on 3500 HD SRW.
BASE PAYLOAD1
|
Regular Cab |
Double Cab |
Crew Cab |
2500 HD ā 2WD (lb / kg): |
3759 / 1705 ā gas 3687 / 1672 ā diesel |
3430 / 1555 ā gas (standard bed) 3431 / 1556 ā diesel (standard bed) 3508 / 1591 ā gas (long bed) 3519 / 1596 ā diesel (long bed) |
3426 / 1554 ā gas (standard bed) 3381 / 1533 ā diesel (standard bed) 3523 / 1598 ā gas (long bed) 3534 / 1603 ā diesel (long bed) |
2500 HD ā 4WD (lb / kg): |
3661 / 1660 ā gas 3850 / 1746 ā diesel |
3383 / 1534 ā gas (standard bed) 3384 / 1535 ā diesel (standard bed) 3504 / 1589 ā gas (long bed) 3516 / 1594 ā diesel (long bed) |
3407 / 1545 ā gas (standard bed) 3411 / 1547 ā diesel (standard bed) 3565 / 1617 ā gas (long bed) 3576 / 1622 ā diesel (long bed) |
3500 HD ā 2WD SRW (lb / kg): |
4583 / 2078 ā gas 4486 / 2034 ā diesel |
4464 / 2024 ā gas 4306 / 1953 ā diesel |
4332 / 1965 ā gas (standard bed) 4162 / 1887 ā diesel (standard bed) 4429 / 2009 ā gas (long bed) 4265 / 1934 ā diesel (long bed) |
3500 HD ā 4WD SRW (lb / kg): |
4590 / 2082 ā gas 4444 / 2015 ā diesel |
4456 / 2021 ā gas 4299 / 1950 ā diesel |
4361 / 1978 ā gas (standard bed) 4191 / 1901 ā diesel (standard bed) 4472 / 2028 ā gas (long bed) 4309 / 1954 ā diesel (long bed) |
3500 HD ā 2WD DRW (lb / kg): |
7290 / 3270 ā gas 6644 / 3013 ā diesel |
6820 / 3093 ā gas 6114 / 2773 ā diesel |
6735 / 3055 ā gas 6023 / 2732 ā diesel |
3500 HD ā 4WD DRW (lb / kg): |
6947 / 3151 ā gas 6301 / 2858 ā diesel |
6513 / 2954 ā gas 5807 / 2634 ā diesel |
6428 / 2915 ā gas 5716 / 2592 ā diesel |
1For comparison purposes only. See the owner's manual and the label on the vehicle door jamb for the carrying capacity of a specific vehicle.
MAX TRAILERING1 ā CONVENTIONAL
|
Regular Cab |
Double Cab |
Crew Cab |
2500 HD ā 2WD (lb / kg): |
14500 / 6577 ā gas 14500 / 6577 ā diesel |
14500 / 6577 ā gas (standard bed) 14500 / 6577 ā diesel (standard bed) 16000 / 7257 ā gas (long bed) 17900 / 8119 ā diesel (long bed) |
16000 / 7257 ā gas (standard bed) 20000 / 9072 ā diesel (standard bed with NHT pkg.) 16000 / 7257 ā gas (long bed) 20000 / 9072 ā diesel (long bed with NHT pkg.) |
2500 HD ā 4WD (lb / kg): |
14500 / 6577 ā gas 14500 / 6577 ā diesel |
14500 / 6577 ā gas (standard bed) 14500 / 6577 ā diesel (standard bed) 16000 / 7257 ā gas (long bed) 17600 / 7983 ā diesel (long bed) |
16000 / 7257 ā gas (standard bed) 20000 / 9072 ā diesel (standard bed with NHT pkg.) 16000 / 7257 ā gas (long bed) 20000 / 9072 ā diesel (long bed with NHT pkg.) |
3500 HD ā 2WD SRW (lb / kg): |
14500 / 6577 ā gas 14500 / 6577 ā diesel |
16000 / 7257 ā gas 20000 / 9072 ā diesel |
16000 / 7257 ā gas (standard bed) 20000 / 9072 ā diesel (standard bed) 16000 / 7257 ā gas (long bed) 20000 / 9072 ā diesel (long bed) |
3500 HD ā 4WD SRW (lb / kg): |
14500 / 6577 ā gas 14500 / 6577 ā diesel |
16000 / 7257 ā gas 20000 / 9072 ā diesel |
16000 / 7257 ā gas (standard bed) 20000 / 9072 ā diesel (standard bed) 16000 / 7257 ā gas (long bed) 20000 / 9072 ā diesel (long bed) |
3500 HD ā 2WD DRW (lb / kg): |
18800 / 8527 ā gas 20000 / 9072 ā diesel |
18350 / 8323 ā gas 20000 / 9072 ā diesel |
18200 / 8255 ā gas 20000 / 9072 ā diesel |
3500 HD ā 4WD DRW (lb / kg): |
18475 / 8380 ā gas 20000 / 9072 ā diesel |
18000 / 8164 ā gas 20000 / 9072 ā diesel |
17800 / 8074 ā gas 20000 / 9072 ā diesel |
1Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Ownerās Manual.
MAX TRAILERING1 ā 5TH WHEEL/GOOSENECK
|
Regular Cab |
Double Cab |
Crew Cab |
2500HD ā 2WD (lb / kg): |
18700 / 8482 ā gas 22500 / 10205 ā diesel (with NHT pkg.) |
18600 / 8436 ā gas (standard bed) 18100 / 8210 ā diesel (standard bed) 18400 / 8346 ā gas (long bed) 17900 / 8119 ā diesel (long bed) |
18500 / 8392 ā gas (standard bed) 21600 / 9797 ā diesel (standard bed with NHT pkg.) 18500 / 8392 ā gas (long bed) 21900 / 9933 ā diesel (long bed with NHT pkg.) |
2500HD ā 4WD (lb / kg): |
18300 / 8300 ā gas 22100 / 10024 ā diesel with NHT pkg. |
18200 / 8255 ā gas (standard bed) 17700 / 7552 ā diesel (standard bed) 18000 / 8164 ā gas (long bed) 17600 / 7983 ā diesel (long bed) |
18500 / 8391 ā gas (standard bed) 21600 / 9797 ā diesel (standard bed with NHT pkg.) 18500 / 8391 ā gas (long bed) 21600 / 9797 ā diesel (long bed with NHT pkg.) |
3500HD ā 2WD SRW (lb / kg): |
19150 / 8686 ā gas 22500 / 10205 ā diesel |
18650 / 8459 ā gas 21950 / 9956 ā diesel |
18650 / 8459 ā gas (standard bed) 21900 / 9933 ā diesel (standard bed) 18550 / 8414 ā gas (long bed) 21850 / 9911 ā diesel (long bed) |
3500HD ā 4WD SRW (lb / kg): |
18800 / 8527 ā gas 22150 / 10047 ā diesel |
18350 / 8323 ā gas 21650 / 9820 ā diesel |
18300 / 8300 ā gas (standard bed) 21600 / 9797 ā diesel (standard bed) 18250 / 8278 ā gas (long bed) 21550 / 9774 ā diesel (long bed) |
3500HD ā 2WD DRW (lb / kg): |
18800 / 8527 ā gas 36000 / 16329 ā diesel (with NHT pkg.)2 |
18300 / 8300 ā gas 31600 / 14333 ā diesel |
18250 / 8278 ā gas 31500 / 14288 ā diesel |
3500HD ā 4WD DRW (lb / kg): |
18450 / 8368 ā gas 31800 / 14424 ā diesel |
18000 / 8164 ā gas 31300 / 14197 ā diesel |
17900 / 8119 ā gas 31200 / 14152 ā diesel |
1Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Ownerās Manual.
2When equipped with gooseneck hitch. Trailering rating is 32,000 lbs. / 14,515 kg with fifth-wheel hitch.
NOTE: All towing capabilities measured using SAE J2807 metrics.
